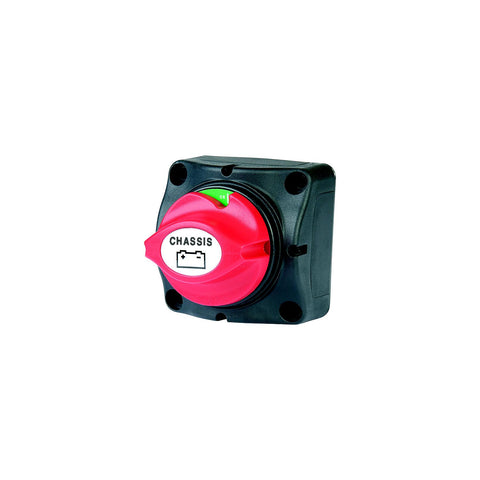

Park Power 701CHRV Battery Master Switch w/"Chassis" Label
Parkpower By Marinco

Park Power 701CHRV Battery Master Switch w/″Chassis″ Label

Our Item #: VLAN679-701CHRV UPC: 093344311666
$39.39
Can be used as a stand alone unit, or locked together with other switches. Features a control knob which cannot be removed while in the ON or OFF position, but it can be removed by switching to an anti-clockwise 45° position. Also features removable side plates on 4 sides for access of up to 1/0 cables plus a rear cover insulating the rear terminals against any short circuits.Specifications:
  • Continuous Rating: 275 Amps DC
  • Intermittent Rating: 455 Amps DC
  • Cranking Rating: 1250 Amps DC
  • Voltage Rating: 48 Volts DC
  • Operation: On/Off
  • Recessed or Surface Mount
  • Ignition Protected
  • Termination Stud Size: 3/8" (2 x 10mm)
  • Dimensions: 2.75" x 2.75" x 3"H (69 x 69 x 75mm H)
  • Tin plated copper studs and nuts

UPC: 093344311666
Model Number: 701CHRV
